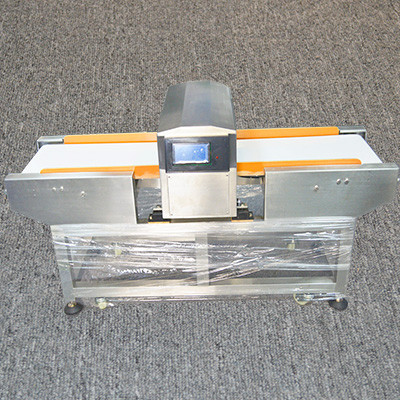

Dry Goods Digital Food Metal Detector

Product Categories

Shenzhen MCD Electronics Co., Ltd.

Contact Now

Brand Name : MCD

Model Number : MCD-F500QD

Certification : ISO , CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T , Western Union , L/C

Supply Ability : 100 set/month

Delivery Time : Normally within 5 working days

Packaging Details : Strong Wooden Case

Detecting Method : Magnetic induction detection

Detecting width : 30-120CM

Detecting height : 6-97CM

Sensitivity adjust : 0-9 Level

Conveyor Belt Speed : 25m/min

Power Supply : AC100-265V , 50-60Hz

Dimension size : (150-170)cm(L) * (80-90)cm(W) * (85-120)cm(H) (Demand can be made)

Dispaly Method : 6 inches of digital circuit touch blue LCD display

Alarm Method : Buzzer&LED indicator twinkles and shutdown automatically

Warranty : 1 yeas

Contact Now

Dry GoodsDigital Food Metal Detector

Quick detail:

6 inches of digital circuit touch blue LCD display
Detecting Method : Magnetic induction detection
Detecting Sensitivity : 0.6mm-3.0mm(Fe) , 1.2mm-5.0mm (SUS)
Alarm Method : Buzzer LED indicator twinkles and shutdown automatically
Detecting width : 30-120CM
Detecting height : 6-97CM
Sensitivity adjust : 0-9 Level
Conveyor Belt Speed : 25m/min
Power Supply : AC100-265V , 50-60Hz
Dimension size : (150-170)cm(L) * (80-90)cm(W) * (85-120)cm(H) (Demand can be made)

metal detector parameters :

Model	Detecting height(cm)	Detecting width(cm)	Sensitivity(mm)		Belt Size(cm)
Model	Detecting height(cm)	Detecting width(cm)	Fe	SUS	Length	Width
MCD-F500QD-09	6	30	Φ0.6	Φ1.2	258	28
MCD-F500QD-12	9	30	Φ0.7	Φ1.5	258	28
MCD-F500QD-15	12	40	Φ0.8	Φ1.5-Φ2.0	258	38
MCD-F500QD-20	17	40	Φ1.0-Φ1.25	Φ2.0-Φ2.5	258	38
MCD-F500QD-25	22	50	Φ1.5-Φ2.0	Φ3.0-Φ4.0	330	48
MCD-F500QD-30	27	50	Φ2.5-Φ3.0	Φ5.0-Φ6.0	330	48
MCD-F500QD-35	32	60	Φ3.0-Φ3.5	Φ6.0-Φ7.0	330	58
MCD-F500QD-40	37	60	Φ3.5-Φ4.0	Φ7.0-Φ8.0	330	58
MCD-F500QD-45	42	70	Φ4.0-Φ4.5	Φ8.0-Φ9.0	330	68
MCD-F500QD-50	47	70	Φ4.5-Φ5.0	Φ9.0-Φ10.0	390	68
MCD-F500QD-55	52	80	Φ5.0-Φ5.5	Φ10.0-Φ11.0	390	78
MCD-F500QD-60	57	80	Φ5.5-Φ6.0	Φ11.0-Φ12.0	390	78
MCD-F500QD-65	62	90	Φ6.0-Φ6.5	Φ12.0-Φ13.0	390	88
MCD-F500QD-70	67	90	Φ6.5-Φ7.0	Φ13.0-Φ14.0	390	88
MCD-F500QD-75	72	100	Φ7.0-Φ7.5	Φ14.0-Φ15.0	450	98
MCD-F500QD-80	77	100	Φ7.5-Φ8.0	Φ15.0-Φ16.0	450	98
MCD-F500QD-85	82	110	Φ8.0-Φ8.5	Φ16.0-Φ17.0	450	108
MCD-F500QD-90	87	110	Φ8.5-Φ9.0	Φ17.0-Φ18.0	450	108
MCD-F500QD-95	92	120	Φ9.0-Φ9.5	Φ18.0-Φ19.0	450	118
MCD-F500QD-100	97	120	Φ9.5-Φ10.0	Φ19.0-Φ20.0	450	118
Remarks: it can't detecting aluminum foil and oxidizing agent , And other additional features should be customized, such as: infrared control, automatic rejecting device, foot switch, alarm indicator, control device, etc

Description:

It can detect ferrous and non-ferrous and other metal objects , the sensitivity can be adjusted separately , with memory function can be stored 10 kinds of test material
Detector with audible and visual alarm , and automatically exclude , stop , rewind functions , user-friendly menu , easy to operate touch screen . Machine made of stainless steel , anti-corrosion , no rust , easy to clean up
Dual-loop circuit design, it can detect ferrous and non-ferrous and other metal objects, the sensitivity can be adjusted separately, with memory function can be stored 10 kinds of test material.
Detector with audible and visual alarm, and automatically exclude, stop, rewind functions, user-friendly menu, easy to operate touch screen. Machine made of stainless steel,anti-corrosion, no rust, easy to clean up.
Conveyor and pallet assembly used in the U.S. "FDA" standards of white non-toxic materials.
Detection accuracy over the corresponding provisions of HACCP system Detect indicators.
Can use with production line

Feature and Applications:

Making the outside shape beautiful and makes the weight of the machine light to adopt the ABS shell of

good quality ,Equippped with the auto-alarm and auto-return device, it is featured by powerful by powerful

anti-magnetic disturbance capability, and sensitivity, be used in food , medicine ,and toys

detector of metal inside

Dry Goods Digital Food Metal Detector
